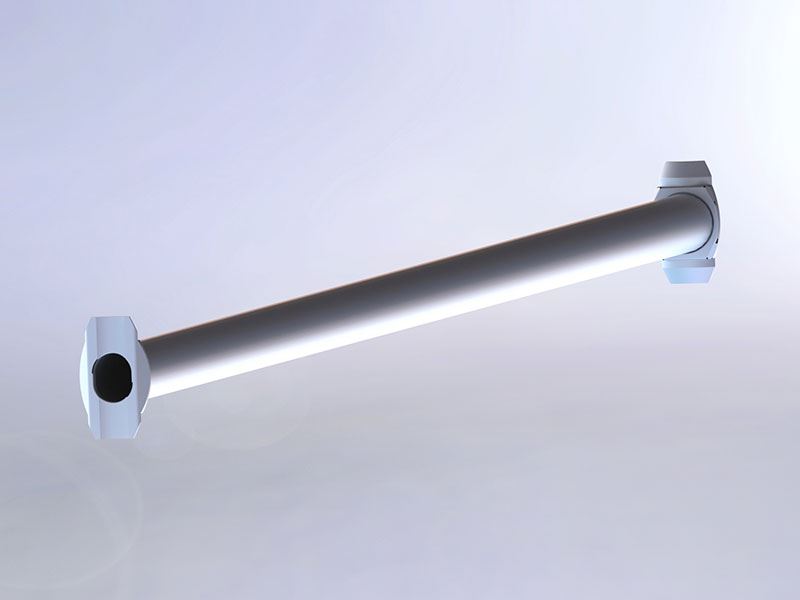

CUPLOCK HORIZONTAL

The cuplock horizontal plays the role of support in the complete scaffolding cuplock system. The shorter horizontal can be used as the horizontal support for planks or as the guardrail. Insert the both ledger blade ends of cuplock horizontal into the bottom cups of cuplock standards, then press and rotate the top cups, fixing them with a stop lock. The cuplock horizontal can be conveniently connected to the cuplock standard, and forming the whole scaffolding cuplock system with a cuplock horizontal and diagonal. The horizontal is hot-dip galvanized.

Parameters

Item No.  Description  Weight (KGS)  Weight (LBS)
CH100 Horizontal 10’/3.05m  11.2  24.67
CH90 Horizontal 9’/2.74m  10.09  22.22
CH80 Horizontal 8’/2.44m  9.02  19.87
CH70 Horizontal 7’/2.13m  7.92  17.44
CH60 Horizontal 6’/1.83m  7.13  15.7
CH52 Horizontal 5’2″/1.57m  7.02  15.46
CH50 Horizontal 5’/1.52m  5.96  13.13
CH40 Horizontal 4’/1.22m  4.82  10.62
CH36 Horizontal 3’6″/1.07m  4.24  9.34
CH30 Horizontal 3’/0.91m  3.72  8.19
CH211  Horizontal 2’7″/0.79m  3.18  7
CH27 Horizontal 1’10″/0.56m  2.32  5.11
